Application: Shut-off valve with tight shut-off for liquids, gases and vapors according to DIN or ANSI standards.

• Valve size DN 15 to 100 · NPS ½ to 4
• Pressure rating PN 16 to 40 · Class 125, 150 and 300
• Medium temp. –10 to +220 °C · 14 to 428 °F

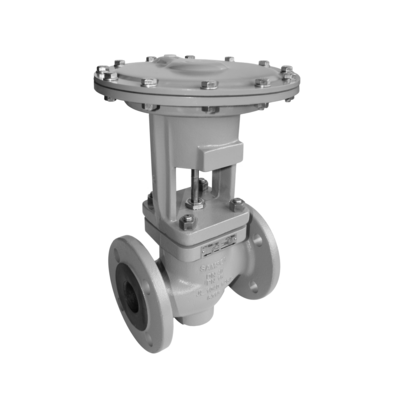

The Type 3351 Pneumatic Control Valve consists of an on/off valve and a pneumatic actuator.

Valve body made of:

• Cast iron
• Spheroidal graphite iron
• Cast steel
• Cast stainless steel

Special features:

• Soft-seated valve plug
• Leakage class VI according to IEC 60534‑4 or class VI according to ANSI/FCI 70‑2
