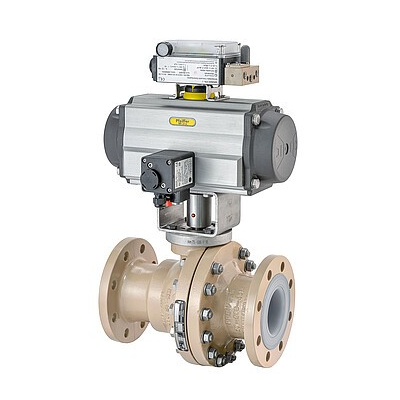

Application: Tight-closing PFA-lined ball valve for (highly) corrosive media, especially with high process demands in chemical plants:

Nominal size DN 15 to DN 200 and NPS½ to NPS8 • Nominal pressure PN 16 and cl150 • Temperature range -40 °C to +200 °C (-40°F to 392°F)

• Full bore, high KV values
• Body of EN-JS 1049 (0.7043 / A395) with PFA-liner (min. 3 mm wall thickness)
• Exchangeable PTFE seat rings
• 1 pcs ball/stem of stainless steel (1.4313) with PTFE liner (min. 3 mm wall thickness)
• Hysteresis-free, perfect for control applications
• Shaft sealed by a self-adjusting PTFE V-ring packing, supported by disc springs, maintenance-free
• Blowout-proof shaft
• Connecting flange for actuators acc. to DIN ISO 5211
• DIN version with face-to-face dimensions acc. to DIN|EN|558
• ANSI version with face-to-face dimensions acc. to ASME|B16.10
• High-quality 2-component PU coating (RAL 1019) as protection against corrosive atmosphere and corrosive formation
