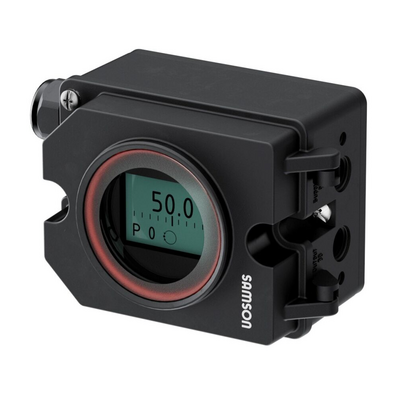

Application: Single-acting positioner for attachment to pneumatic globe and rotary valves. Self-calibrating, automatic adaptation to valve and actuator.
Simple direct attachment to SAMSON Type 3277 Actuator (120 to 750 cm²)
Attachment according to IEC 60534-6-1 (NAMUR)
Attachment to rotary actuators according to VDI/VDE 3845
Attachment to Type 3372 Actuator for Series V2001 Valves
Easy operation with intuitive navigation menu using three capacitive keys
LCD easy to read in any mounting position thanks to selectable reading direction
Variable, automatic start-up
Preset parameters (only values deviating from the standard need to be adjusted)
All parameters saved in non-volatile EEPROM
Tight-closing function can be activated
Continuous zero monitoring
Non-contact position sensing
Unaffected by environmental effects and steam hammering
