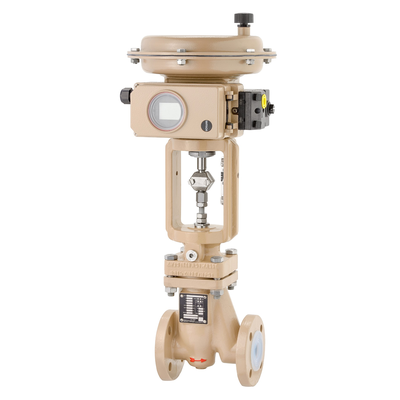

Application: PFA-lined control valve for corrosive media, especially suitable for high requirements in chemical plants and other industries.
• Valve size DN 15 to 150 / NPS½ to 6
• Pressure rating PN 10, PN 16 and cl150
• Temperatures –10 to +200 °C (14 °F to 392 °F)
• Valve body of EN-JS 1049/A 395 as standard, with 3-5 mm thick PFA lining
• Exchangeable PTFE seat and PTFE plug
• Stem sealed by a PTFE bellows and a backup, springloaded PTFE V-ring packing
• Test connection for monitoring
• Exchangeable actuator
• Additional equipment and mounting parts available according to IEC 60534 and NAMUR recommendations
• Face-to-face dimensions for DIN version according to DIN EN 558, Series 1
• Face-to-face dimensions for ANSI version according to DIN EN 558, Series 37
