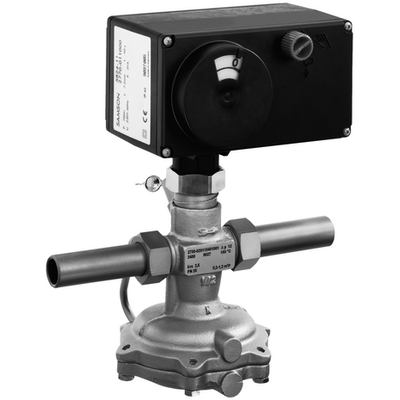

Application: Pressure-independent control valve (PICV), e.g. for flow rate and temperature control in district heating systems or extended heating or cooling networks. Combined with an electric actuator used to transmit the control signal of an electric control device as well as optional connection of a thermostat. Suitable for treated water up to 150 °C and non-flammable gases up to 80 °C

• Combined self-operated regulator for flow rate with additional electric actuator
• Nominal diameter DN 15…50
• Nominal pressure PN 16…25
• Globe valve with flanges single seat balanced
• Valve body made of Red brass CC499K (Rg 5) , Spheroidal graphite iron EN-GJS-400-18-LT
• Reduced Kvs-values available
• Flow set points from 0.03 to 15 m³/h / 0.13 to 66 US gal/min
• Control connection external
