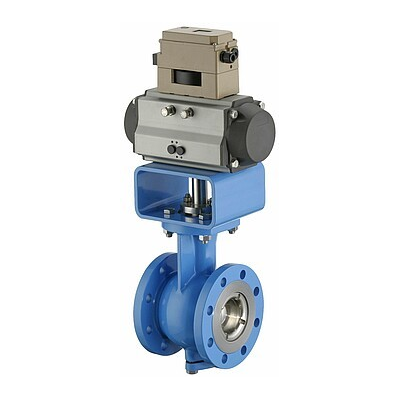

Application: Double eccentric control valve for process engineering and industrial applications
DN 25 to DN 300 / PN 10 to PN 40 / Temperature –40 to 350 °C / Cryo design –196 to –100 °C
Valve Body Material
• Cast carbon steel
• Cast stainless steel
• Low temperature carbon steel
• Special alloys (Duplex, Hastelloy etc.)
• Other special materials on request
Seat version
• Metal sealing, armored or unarmored
• Soft sealing
• Standard seat factors 1 / 0.6 / 0.4 / 0.25
Further versions
• TA-Luft packing
• With high and low temperature extension (IT1)
• With Cryogenic extension (IT2)
• Double stuffing box (DSB)
• Protective sleeve
• Heating jacket
• Flushing connections
• Special materials for body and trim
• Noise-reducing features
• Flange version with tongue/groove, male face/female face according to EN 1092-1
• RF and RTJ according to ANSI B16.5
